Powertrain Control Module

Choose the sensor below for descriptions

1. Powertrain Control Module (PCM)
2. Throttle Position (TP) sensor
3. Mass Air Flow (MAF) sensor
4. Intake Air Temperature (IAT) sensor
5. Idle Air Control (IAC) valve
6. Engine Coolant Temperature (ECT) sensor
7. Heated Oxygen Sensor (HO2S)
8. Camshaft Position (CMP) sensor
9. Knock Sensor (KS)
10. Vehicle Speed Sensor (VSS)
11. Crankshaft Position (CKP) sensor
12. Fuel Injector
13. Coolant Temperature Sensor (CTS)
14. Exhaust Gas Recirculation (EGR)
15. Manifold Absolute Pressure (MAP)

Source: FreeAutoMechanic.com/car-engine-sensors.html

Powertrain Control Module (PCM)

The Powertrain Control Module (PCM) performs many functions on your car. The module accepts information from various engine sensors and computes the required fuel flow rate necessary to maintain the correct amount of air/fuel ratio throughout the entire engine operational range.

Based on the information that is received and programmed into the PCM's memory, the PCM generates output signals to control relays, actuators and solenoids. The PCM also sends out a command to the fuel injectors that meters the appropriate quantity of fuel. The module automatically senses and compensates for any changes in altitude when driving your vehicle.

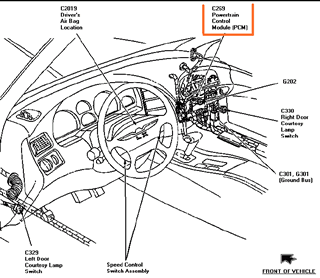

PCM Location Diagram
