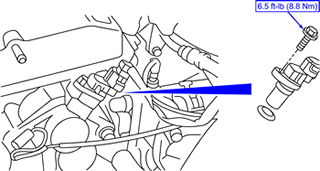

Camshaft Position Sensor (CMP)

The CMP sensor provides the camshaft position information, called the CMP signal, which is used by the Powertrain Control Module (PCM) for fuel synchronization.

On 2 wire Sensor engines, the distributor stator or Camshaft Position (CMP) sensor is a single Hall effect magnetic switch. This is activated by a single vane, and is driven by the camshaft.

On Three Wire Sensor engines, the Camshaft Position (CMP) sensor is a variable reluctance sensor, which is triggered by the high-point mark on one of the camshaft sprockets.
