Check Engine Light On Dash
Check Engine Light On, Sensor Descriptions

Manifold Absolute Pressure

Choose the sensor below for descriptions
  1. Powertrain Control Module (PCM)
  2. Throttle Position (TP) sensor
  3. Mass Air Flow (MAF) sensor
  4. Intake Air Temperature (IAT) sensor
  5. Idle Air Control (IAC) valve
  6. Engine Coolant Temperature (ECT) sensor
  7. Heated Oxygen Sensor (HO2S)
  8. Camshaft Position (CMP) sensor
  9. Knock Sensor (KS)
  10. Vehicle Speed Sensor (VSS)
  11. Crankshaft Position (CKP) sensor
  12. Fuel Injector
  13. Coolant Temperature Sensor (CTS)
  14. Exhaust Gas Recirculation (EGR)
  15. Manifold Absolute Pressure (MAP)

Source: FreeAutoMechanic.com/car-engine-sensors.html

Manifold Absolute Pressure (MAP)

Reads a change in manifold pressure. The computer uses this information to adjust timing advance and air/fuel ratio.

Map Sensor

The EMS uses the MAP sensor on systems that have a Mass Airflow Sensor (MAF) as a backup. The EMS also uses the MAP sensor as an EGR diagnostic device and as an engine load verification device. The EMS system uses this information to calculate engine load and EGR flow rates. The EMS uses speed-density calculations (non-mass airflow sensor systems) to determine the required amount of fuel delivery.

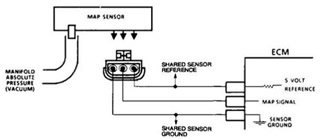

map sensor diagram
